How to Test Resistors: Easy Step-by-Step Guide

Testing a resistor is one of those electronics skills that looks mysterious until you do it once. After that, it feels a lot like checking whether a pencil is actually a pencil: you grab the right tool, read the value, compare it with what you expected, and try not to act too smug when you find the bad part before anyone else does.

Resistors may be tiny, cheap, and easy to overlook, but they do serious work. They limit current, divide voltage, protect LEDs, bias transistors, shape signals, and quietly keep circuits from behaving like a toaster with ambition. When a resistor fails, drifts out of tolerance, overheats, cracks, or reads incorrectly in a circuit, the whole project can misbehave.

This guide explains how to test resistors with a digital multimeter, how to read resistor color codes, how to compare measured resistance against tolerance, and how to troubleshoot confusing readings. Whether you are fixing a circuit board, checking a kit part, sorting components, or learning electronics from scratch, this easy step-by-step guide will help you test resistors safely and confidently.

What Is a Resistor?

A resistor is a passive electronic component that resists the flow of electric current. Its value is measured in ohms, shown by the Greek letter omega: Ω. A low-value resistor, such as 10 Ω, allows more current to pass than a high-value resistor, such as 1 MΩ. In simple terms, resistance is like a narrow hallway at a crowded concert: the narrower the hallway, the slower everyone gets through.

Resistors are used in almost every electronic device. They can reduce current, set voltage levels, create timing circuits, pull signals up or down, and protect sensitive components. Common resistor types include carbon film, metal film, wirewound, thick-film chip resistors, precision resistors, and variable resistors such as potentiometers.

Tools You Need to Test a Resistor

You do not need a laboratory full of blinking equipment to test a basic resistor. For most home, classroom, and repair tasks, a simple digital multimeter is enough.

Basic tools

• A digital multimeter with an ohms setting
• Test leads or probe clips
• The resistor you want to test
• A resistor color code chart or calculator
• Good lighting, especially for tiny color bands

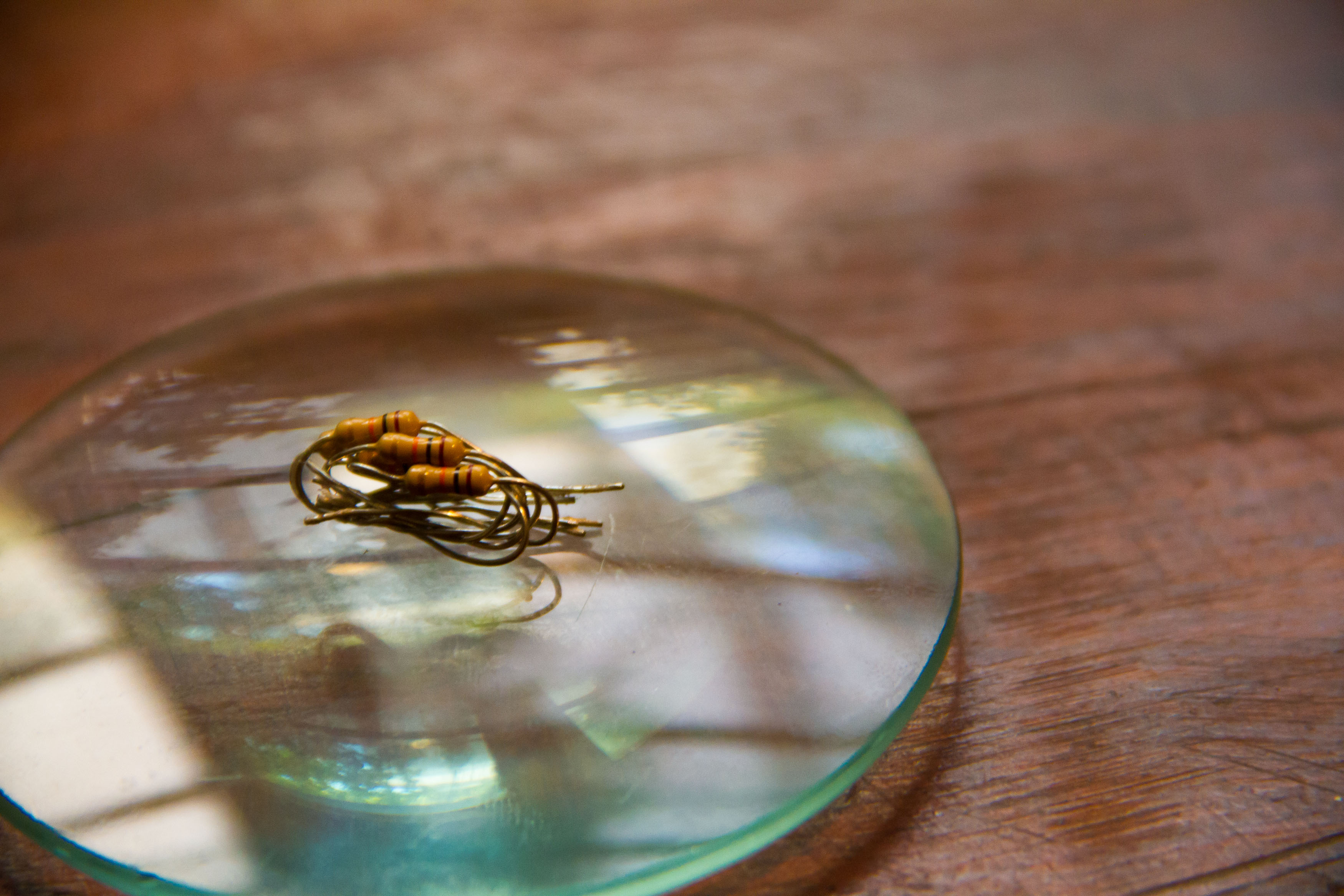

Optional but helpful tools include tweezers, alligator clips, a magnifying glass, a component tester, and a soldering iron if you need to lift one resistor leg from a circuit board.

Safety First: Never Test Resistance on a Live Circuit

Before measuring resistance, turn off power to the circuit. This is not just a polite suggestion from the electronics gods. A multimeter measures resistance by sending a small internal test current through the component. If the circuit is powered, the meter can read incorrectly, and in some cases, the meter or circuit can be damaged.

If the resistor is inside a device, unplug the device, remove batteries, and make sure large capacitors are discharged by a qualified person if you are working on power supplies, amplifiers, appliances, or anything connected to wall power. If you are not trained to work around high voltage, do not poke around inside mains-powered equipment. Resistors are cheap. Fingers are not sold in convenient replacement packs.

Step 1: Identify the Resistor Value

Before testing a resistor, you need to know what value it is supposed to be. There are three common ways to identify resistor value:

• Read the color bands on an axial through-hole resistor.
• Read the printed code on a surface-mount resistor.
• Check the circuit schematic, bill of materials, or part marking.

How to read resistor color bands

Most traditional resistors have colored bands that indicate resistance and tolerance. A 4-band resistor usually has two significant digits, one multiplier, and one tolerance band. For example, a resistor with brown, black, red, and gold bands reads as 10 × 100 = 1,000 Ω, or 1 kΩ, with ±5% tolerance.

A 5-band resistor usually has three significant digits, one multiplier, and one tolerance band. These are common in precision resistors. For example, brown, black, black, brown, brown equals 100 × 10 = 1,000 Ω, or 1 kΩ, with ±1% tolerance.

Common resistor color code values

Tolerance tells you how far the actual resistance is allowed to vary from the printed value. Gold usually means ±5%, silver means ±10%, brown often means ±1%, and red often means ±2%. So a 1 kΩ resistor with ±5% tolerance can normally measure anywhere from 950 Ω to 1,050 Ω and still be considered good.

Step 2: Set Your Multimeter to Ohms

Turn your digital multimeter dial to the resistance setting, marked with Ω. On some meters, resistance shares a dial position with continuity, diode test, or capacitance. If your meter has a function button, you may need to press it until the display shows ohms.

Plug the black lead into the COM jack and the red lead into the VΩ jack. Do not use the high-current amp jack for resistance testing. That jack is for current measurements, and using the wrong port is one of the classic multimeter mistakes, right up there with saying “I only need one hand” while reaching for a falling roll of solder.

Step 3: Check the Meter Before Measuring

Touch the two probe tips together. A good meter should show very low resistance, usually close to 0 Ω. It may show 0.1 Ω, 0.2 Ω, or slightly more because the test leads themselves have resistance. That is normal.

If your meter shows “OL,” “1,” or an open-circuit symbol while the probes are touching, check the lead connections, range setting, battery, and probe condition. If your meter has a continuity mode, it may beep when the probes touch, confirming that the leads and meter are working.

Step 4: Remove Power and Isolate the Resistor

If the resistor is loose on your workbench, you can test it directly. If it is installed in a circuit, the reading may be affected by other components connected in parallel or series. For the most accurate result, remove the resistor from the circuit or lift one leg from the board.

This matters because your multimeter does not know your intentions. It only sees electrical paths. If another resistor, capacitor, coil, semiconductor, or circuit trace is connected around the part, the meter may measure the combined path instead of the resistor itself. The result can be lower, higher, unstable, or just plain weird.

Step 5: Touch the Probes to Both Resistor Leads

Place one probe on each end of the resistor. Resistors are non-polarized, so probe direction does not matter. You can put the red probe on either side and the black probe on the other. The resistor will not be offended.

Hold the probes firmly against clean metal leads. Avoid touching both metal probe tips with your fingers while measuring high-value resistors, because your body resistance can affect the reading. For small resistors or surface-mount parts, probe clips or tweezers can make the job much easier.

Step 6: Read the Resistance Value

Now look at the display. Auto-ranging meters automatically choose the best range and may show values as Ω, kΩ, or MΩ. Manual-ranging meters require you to choose a range higher than the expected resistor value.

For example:

• 220 Ω may display as 219.8 Ω or 0.220 kΩ.
• 1 kΩ may display as 0.998 kΩ or 998 Ω.
• 10 kΩ may display as 10.02 kΩ.
• 1 MΩ may display as 0.999 MΩ or 999 kΩ.

If the display says “OL,” the resistor may be open, the range may be too low on a manual meter, or the probes may not be making contact. If the display jumps around, check your grip, clean the leads, and make sure the circuit is not connected to other components.

Step 7: Compare the Reading with the Tolerance

A resistor does not need to match its printed value perfectly. It only needs to fall within its tolerance range. To calculate tolerance, multiply the nominal value by the tolerance percentage.

Example: testing a 1 kΩ ±5% resistor

A 1 kΩ resistor equals 1,000 Ω. Five percent of 1,000 is 50 Ω. That means the resistor should measure between 950 Ω and 1,050 Ω. If your multimeter reads 992 Ω, the resistor is good. If it reads 1,380 Ω, something is wrong. If it reads “OL,” the resistor may be open.

Example: testing a 10 kΩ ±1% resistor

A 10 kΩ resistor equals 10,000 Ω. One percent of 10,000 is 100 Ω. The acceptable range is 9,900 Ω to 10,100 Ω. A reading of 10.04 kΩ is fine. A reading of 8.7 kΩ is outside tolerance and should not be used where accuracy matters.

How to Test a Resistor in a Circuit

Testing a resistor in a circuit is possible, but it is not always reliable. If the resistor is connected to other components, your meter may measure more than one path. In many cases, the reading will be lower than expected because current can travel through parallel components.

Start by turning off power and removing batteries. Measure the resistor across its leads. If the value matches the expected range, the resistor is probably fine. If the value is too low, do not immediately blame the resistor. It may be another parallel path on the board. To confirm, desolder one leg of the resistor and test it again.

If the value is much higher than expected or reads open, the resistor may be damaged. Burn marks, cracking, discoloration, a scorched board, or a smoky smell are also suspicious signs. Electronics repair has many mysteries, but a visibly cooked resistor is rarely trying to be subtle.

How to Test Very Low-Value Resistors

Low-value resistors, such as 0.1 Ω, 0.22 Ω, or 1 Ω, are harder to measure accurately with a basic two-probe multimeter. The resistance of the test leads can be large compared with the resistor value. If your leads measure 0.3 Ω and your resistor is 0.22 Ω, the meter may show a number that looks like it needs a math tutor.

For better low-resistance measurements, touch the probes together and note the lead resistance. Some meters have a relative or zero function that subtracts this value. For serious precision, use a four-wire Kelvin measurement, which uses separate current and sense leads to reduce the effect of lead and contact resistance.

How to Test High-Value Resistors

High-value resistors, such as 1 MΩ, 4.7 MΩ, or 10 MΩ, require patience and clean technique. Keep your fingers away from the metal leads while testing because skin resistance can create a parallel path. Dirt, flux residue, moisture, and fingerprints can also affect readings.

If the reading is unstable, clean the resistor body and leads, use clips instead of fingers, and let the meter settle. High resistance measurements may take a moment, especially on inexpensive meters.

How to Test a Variable Resistor or Potentiometer

A potentiometer is a variable resistor with three terminals. To test it, measure across the two outer terminals first. The reading should be close to the rated value, such as 10 kΩ or 100 kΩ. Then measure between the center terminal, called the wiper, and one outer terminal while turning the knob.

The resistance should change smoothly. If the reading jumps, drops out, or goes open in spots, the potentiometer may be dirty or worn. A scratchy audio volume knob is often a classic example. Sometimes cleaning helps, but if the internal track is damaged, replacement is the better answer.

Signs of a Bad Resistor

A resistor can fail in several ways. It may go open, drift high, drift low, become intermittent, or change value when hot. In most repair situations, resistors more commonly fail open or increase in resistance after overheating, though failure behavior depends on resistor type and circuit conditions.

Common warning signs

• The resistor reads “OL” or open.
• The measured value is outside tolerance.
• The resistor is cracked, burned, or discolored.
• The circuit board around it looks scorched.
• The value changes when the resistor is gently moved.
• The circuit works cold but fails after warming up.

If a resistor failed because of excess current, replacing it without finding the cause may lead to a repeat performance. That is not repair; that is feeding snacks to the smoke monster. Check nearby components, shorted semiconductors, incorrect supply voltage, and damaged traces before installing a new resistor.

Common Mistakes When Testing Resistors

The most common mistake is measuring resistance while the circuit is powered. The second is testing a resistor in-circuit and assuming the reading belongs only to that resistor. Another common error is forgetting tolerance and declaring a perfectly good resistor “bad” because it is not exactly equal to the printed value.

Manual-ranging meters create their own comedy routine. If you test a 100 kΩ resistor on the 2 kΩ range, the meter may show overload. That does not mean the resistor is broken. It means the meter is politely asking you to choose a better range.

Dirty probes can also cause trouble. Oxidized leads, loose probe tips, weak meter batteries, and poor contact can all create strange readings. Before blaming the component, make sure your measurement setup is not the villain wearing a fake mustache.

Practical Troubleshooting Examples

Example 1: LED resistor check

You are building a small LED circuit and the LED is too bright. The schematic calls for a 330 Ω resistor, but you accidentally installed orange-orange-black, which is 33 Ω, not orange-orange-brown, which is 330 Ω. A quick multimeter test confirms the mistake. The LED was not being dramatic; it was overworked.

Example 2: Power supply resistor reads low

A 10 kΩ resistor on a board reads 6.8 kΩ in-circuit. Before replacing it, you lift one leg and measure again. Now it reads 9.98 kΩ. The resistor is good; another path on the board caused the lower reading.

Example 3: Burned resistor reads open

A resistor near a voltage regulator is darkened and reads “OL.” That resistor is likely failed. However, the next step is not simply replacing it and celebrating. You should check the circuit for the reason it overheated, such as a shorted component downstream.

Best Practices for Accurate Resistor Testing

For accurate results, test loose resistors whenever possible. Let hot resistors cool before measuring because resistance can change with temperature. Use the correct meter range, keep probe contact steady, and avoid touching metal leads on high-value measurements.

For low-ohm resistors, subtract lead resistance or use a meter with a relative mode. For precision work, use a known reference resistor to check your meter. A 1% resistor, such as 1 kΩ or 10 kΩ, is useful for quick confidence testing. If the reference reads wildly wrong, the resistor may not be the problem; your meter may need a battery, better leads, or retirement with dignity.

Beginner Experience: What Testing Resistors Teaches You

The first time you test resistors, the process can feel slower than it should. You read the color bands, second-guess whether the stripe is red or orange, rotate the resistor under a lamp, then wonder why anyone thought beige bodies and tiny paint bands were a great user interface. That frustration is normal. After a little practice, you start recognizing common values almost instantly.

A helpful beginner habit is to test several known resistors in a row. Grab a 220 Ω, 1 kΩ, 4.7 kΩ, 10 kΩ, and 100 kΩ resistor. Read the color code first, write down the expected value, then measure with the multimeter. This simple exercise builds confidence because you see tolerance in real life. A 10 kΩ resistor may read 9.96 kΩ. A 220 Ω resistor may read 218.7 Ω. Those are not failures; they are normal manufacturing variation.

Another valuable lesson is that in-circuit readings can be misleading. Many beginners test a resistor on a circuit board, see a strange value, and immediately assume the component is bad. Later, after lifting one leg, the resistor tests perfectly. This is a classic electronics learning moment. The meter measures every available path, not just the part you are staring at with suspicion.

Testing resistors also teaches patience with measurement technique. Probe pressure matters. Clean leads matter. Range settings matter. Even your fingers can matter when measuring large resistance values. Once you understand these small details, your troubleshooting becomes calmer and more accurate.

In real repair work, resistor testing is often part detective work and part common sense. A resistor that looks clean and measures within tolerance is usually innocent. A cracked resistor next to a burned transistor deserves more attention. A resistor that repeatedly fails after replacement is probably not the root problem. Something else may be forcing too much current through it.

The best experience-based tip is this: do not test randomly forever. Use the circuit symptoms to guide you. If an LED is dead, check the LED resistor and power path. If an amplifier channel is weak, compare resistor readings with the working channel. If a power supply is blowing parts, inspect high-wattage resistors, current-sense resistors, and nearby semiconductors. Smart testing saves time and keeps your workbench from turning into a tiny graveyard of perfectly good components.

Conclusion

Learning how to test resistors is a foundational electronics skill. The basic process is simple: identify the resistor value, turn off power, set the multimeter to ohms, measure across the resistor, and compare the result with the expected tolerance range. The real skill comes from understanding when a reading is trustworthy and when the circuit around the resistor is affecting the result.

For everyday testing, a digital multimeter is usually all you need. For low-value resistors, account for lead resistance. For high-value resistors, keep your fingers and dirt away from the measurement path. For in-circuit testing, remember that other components can fool the meter. And when a resistor is visibly burned, ask why it burned before simply replacing it.

Once you get comfortable testing resistors, circuit troubleshooting becomes much less intimidating. Those tiny striped cylinders stop looking like electronic confetti and start looking like useful clues. Your multimeter becomes less of a mysterious gadget and more of a truth detector with probes.
